Descripción

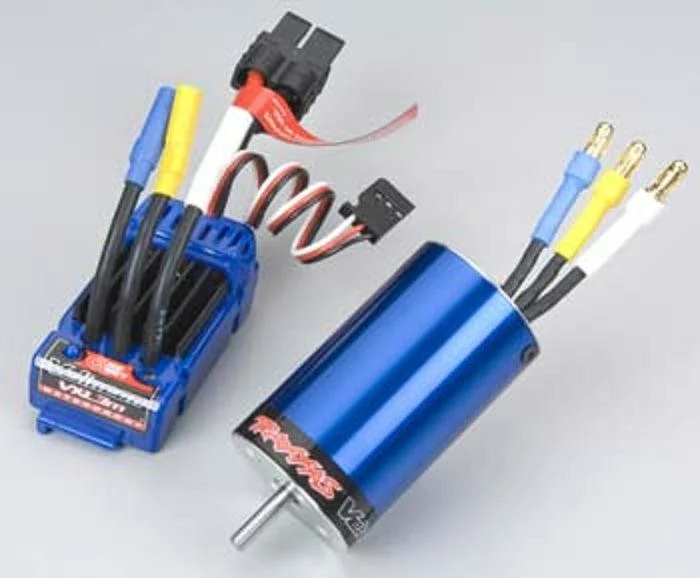

Traxxas Velineon 380 Extreme Brushless Power System
Features:
- Ultra high temp sintered neodymium motor magnets
- Balanced rotor
- High speed ball bearings
- Low voltage detection
- Traxxas high current connectors
- 16-gauge wire
Includes:
- VXL3m ESC, TRAM3375 Velineon 380 Brushless Motor, TRAC3371
Specs:
- VXL3m ESC:
- Input Voltage: 6-12 cells NiMH, 2S to 3S LiPo
- Motors: Sensorless Brushless
- Motor Limit: None
- Continuous Current: 52A
- Peak Current: 326A
- BEC Voltage: 6.0Volts DC
- Transistor Type: MOSFET
- On-Resistance: 0.0005 ohms
- PWM Frequency: 12,000Hz
- Weight: 38g (1.34oz)
- Motor:
- Type: Sensorless Brushless
- RPM/Volt: 4000 (8-turn)
- Current Ratings: 25A constant/50A burst
- Max RPM: 50,000
- Weight: 140g (4.94oz)
- Length: 48.15mm (1.9″)
- Diameter: 28mm (1.1″)
- Shaft Diameter: 2.7mm (0.11″)
